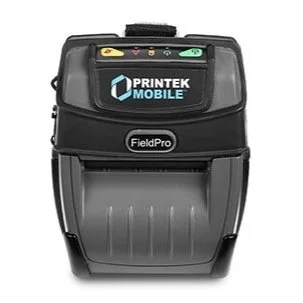

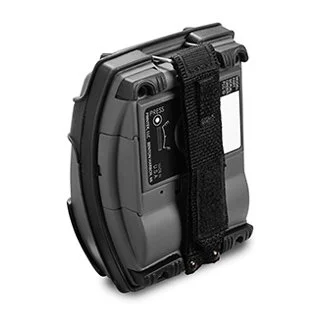

FP530L ￜ FieldPro Series

The versatile FP530L can print PDF™, Postscript™, and many other graphic files direct from any host!

The FieldPro 530L printers are the next generation in mobile printing. The FP530 Series was designed to provide users super-fast print speeds, a long lasting battery, easy Web-based setup configuration, and hundreds of fonts for printing in any language. This printer series is lightweight, rugged, and perfect for all 3” and 2” receipts, labels, tickets, and more. It is designed to provide quick, crisp documents for field service, hospitality, retail, parking, and any application that has a need to print on the go.

FP530 Series printers can be a drop-in replacement for any existing mobile printing application. It is smaller and lighter than many of its competitive models. Additional features of the FP530 Series include:

• Easy-to-read control face and simple drop-in paper loading.

• The 530L quickly prints a wide variety of labels, tickets, and receipts.

• IP54 rated for water and dust resistance... plus rated for repeated 6-foot drops to concrete.

• Print speeds up to 5 ips from the moment you press the print command.

• Extensive fonts, character sets, bar codes and graphic capabilities.

• Printer configuration is quick and easy with a web based interface..

• The latest in battery technology provides for full-shift printing in all modes.

• Compatible with Windows, Android, and iOS Bluetooth.

• Emulations that allow the printer to be a drop-in replacement for any mobile printer.

• Industry best warranty - 3-years!

FieldPro FP530 Series is compatible with the mobile host of your choice—from fully ruggedized handhelds, laptops, and tablet computers to data-enabled phones.

Printing Specifications

• Printing Method: Direct thermal

• Printing Resolution: 203 dpi (8 dots per mm)

• Printing Speed: Up to 5 ips

• Printing Width: Up to 2.8 inches (72 mm)

• Paper Width: Up to 3.125 inches (80 mm). Adaptable to 2” roll widths

Fonts/Characters/Bar Codes

• Fonts: Virtually all TrueType fonts, from 6 cpi to 34 cpi depending on emulation chosen, plus scaling

• International Characters: Most common sets available. Unicode support

• Bar Codes: Virtually all 1D and 2D codes supported, depending on emulation chosen

• Downloadable firmware, fonts, graphics, and logos

Connectivity

• Standard (All Units): USB-B mini

• Wireless Options:

• Bluetooth®

• Complete Bluetooth® 4.0 Stack including:

• Protocols: L2CAP, RFCOMM, SDP

• Profiles: GAP, SDAP, SPP, BTLE

• Class 2 Operation

• RFC2217 and EN60601 compliant

• Wi-Fi 802.11b/g/n compatible

• Universal Port: Data and power port–allows connection of external devices such as MCR, bar code scanners, biometrics, RFID Software

• Drivers and Utilities: Drivers for WIN 10 and WIN 11. Compatible with Windows, Android, and iOS Bluetooth. Print utilities and SDKs for all platforms. Native App and Web printing.

• Printer Setup Program provides convenient configuration via a Web interface from any host (tablets and smartphones included).

• Emulations: Emulates many popular printer brands and languages including Zebra CPCL and ZPL, and ESC POS. Firmware can be upgraded as new emulations become available.

• Supports direct printing of Postscript, PDF, PBM, JPG, PNG, BMP, SVG, and TIFF files.

Print Media

• Paper Type: Direct Thermal Roll

• Roll Size: Maximum roll diameter 2.625” (66 mm), roll widths from 2.9” to 3.125” (74 to 80 mm)

• Roll Capacity: Approx. 75’ (23 m), creating 220.4” long receipts (with 5.5 mil thick media)

• Core Size: 0.75” (19 mm) Recommended

Power Management

• Battery: Rechargeable 3-cell lithium ion, (11.3 V, 2950 mAh, 33.2 Wh)

• Endurance: Over 3,500 printed inches per charge

• Power Option: 100–240 VAC wall adapter, or 12–24 VDC in-vehicle adapter. When plugged in, the printer can be used while recharging the battery or can be run without the battery (print and charge adapter)

Physical Specifications

• FP530L: L x W x H: 6.1” x 4.6” x 3.1” (15.5 cm x 11.7 cm x 7.9 cm)

• Weight: 24 ounces (.68 kg) with battery

Environmental Specifications

• Operating Temp: 0°F to 122°F (-18°C to 50°C)

• Storage Temp: -4°F to 140°F (-20°C to 60°C)

• Humidity: 10% to 90% RH (noncondensing)

• Rated IP54 per IEC 529

Operator Controls and Indicators

• 3 LED indicators for general fault, wireless connection/power, and battery status indication. Buttons for power and paper feed

• Sensors for paper out, black mark detection, and door open. “Gas gauge” on battery door

Memory Capacity

• 256 MB Flash, 512 MB DDR2. Standard memory supports large and graphic-intensive print jobs

Durability and Reliability

• Survives multiple 6-foot drops to concrete (each face) and conforms to IEC 68-2

• MTBF: 10,000 hours in normal use

Regulatory Approvals

• FCC Class B, CE mark, RoHS, e-mark

Warranty

• 3-year printer warranty on the entire printer—case and printhead included. 2-year warranty on the battery

• Optional 5-year Extended warranty available.

Options and Accessories

• Universal Port, 3-Track Simultaneous-Read MCR, bar code scanners, biometrics, RFID

• AC Wall Adapter, 100 to 240 VAC

• Print and charge version

• Charge-only version

• In-Vehicle Power Adapter, 12 to 24 VDC

• Shoulder Strap

• Data Cables: USB

• Spare Batteries in Multi-Packs

• Media in Case Quantities

• Popular Mounting Systems

• In-Vehicle Systems

• Cart Mounting Systems
