VP420 ￜ VehiclePro Series

4-inch Thermal Printers that take zero space in your crowded vehicle.

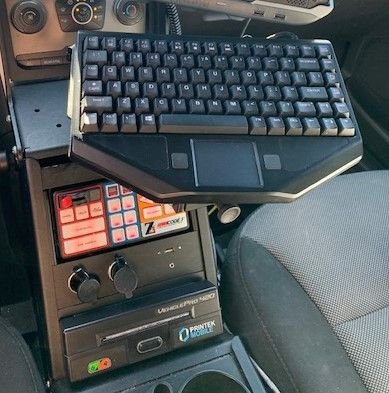

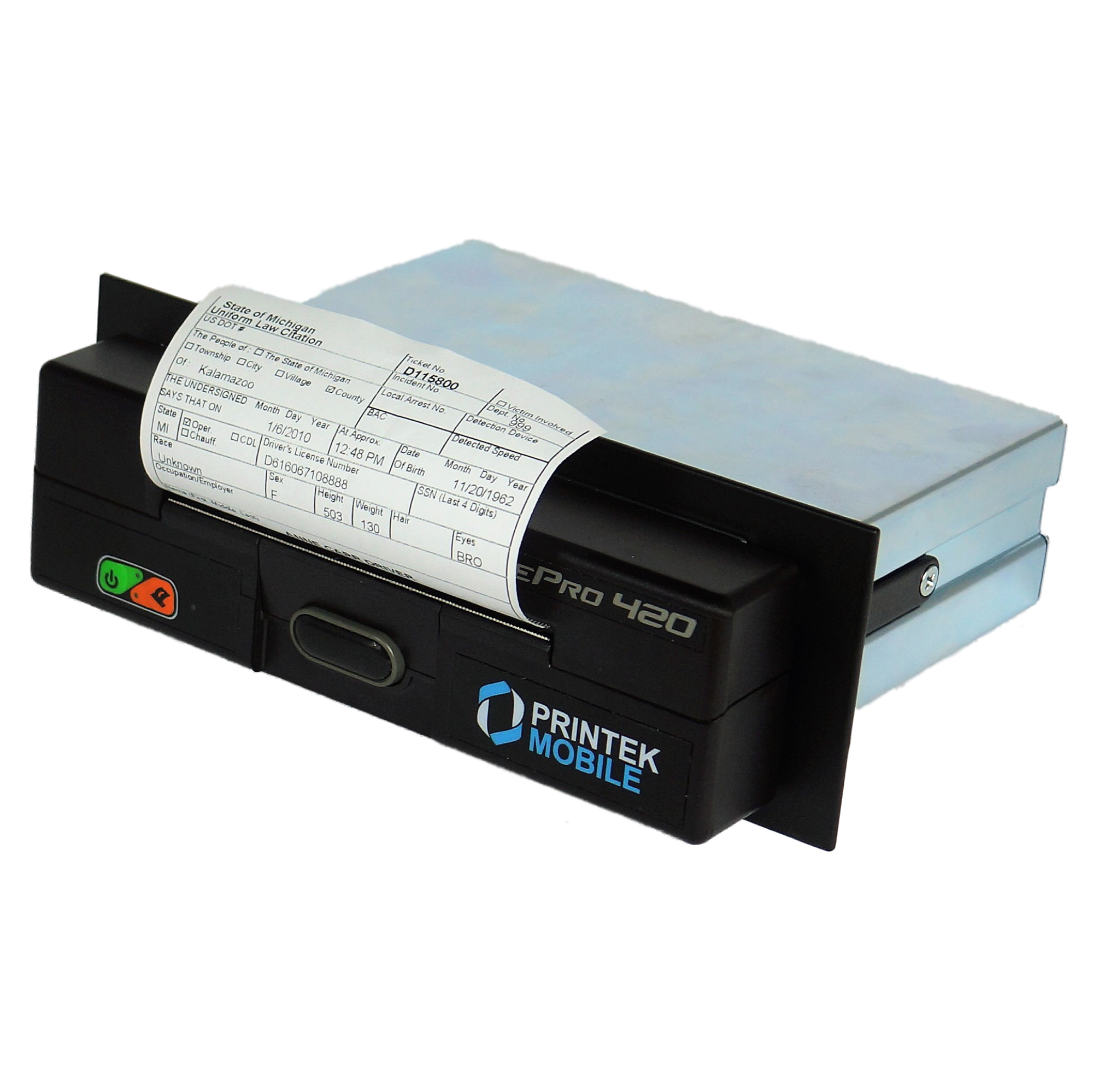

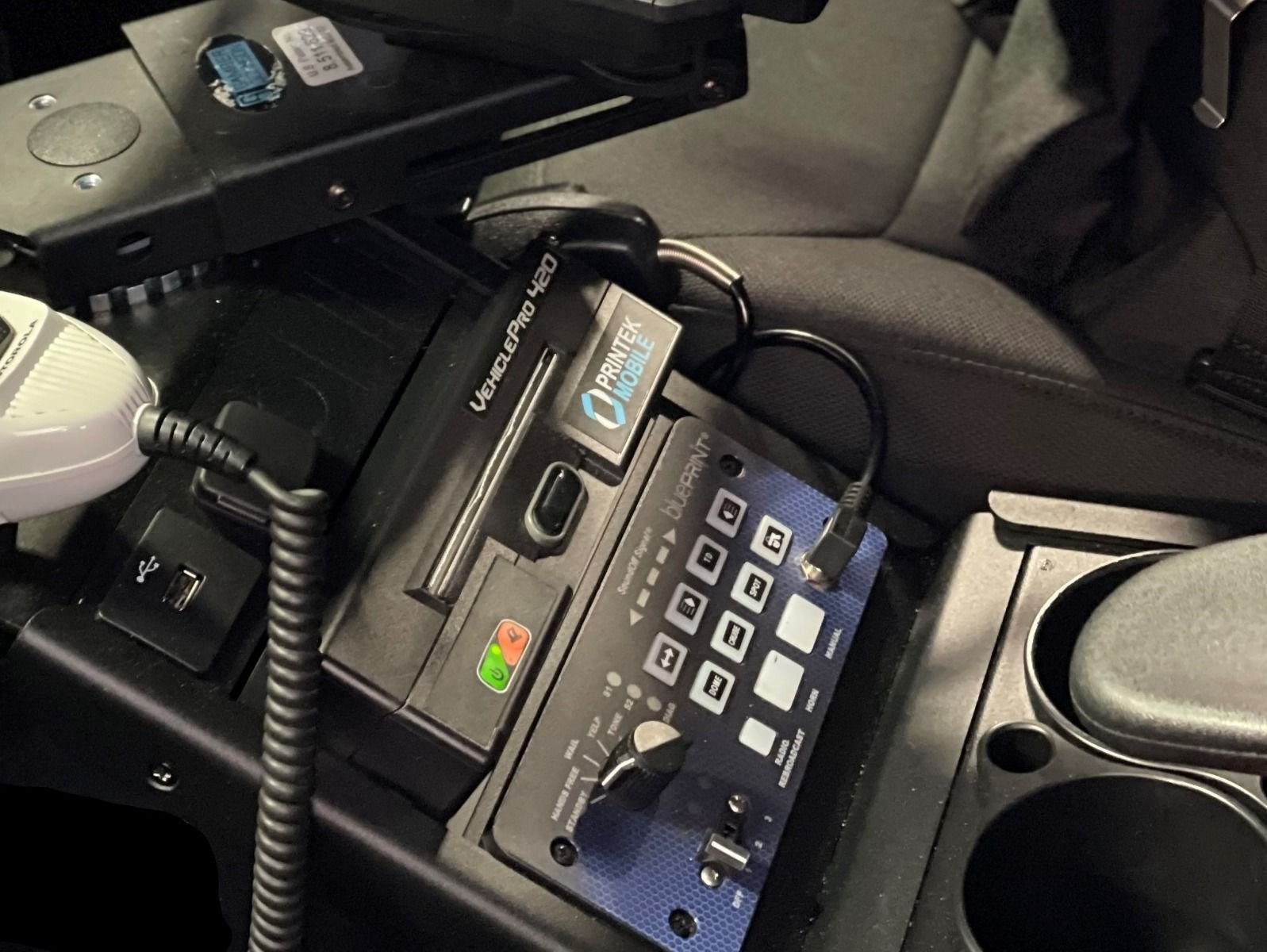

The newly designed VehiclePro 420 printer is a 4” thermal printer that was designed specifically for use in public safety vehicles in either a front dash or center console application. The VP420 is faster, easier to use, and comes with more features than the previous VP400 models. It is the only printer designed specifically for police and fire department applications for ticket printing, rip and runs, and more. The VehiclePro 420 is designed to be a simple and quick install, and only has one cable for power and data. There is no need to buy extra mounting equipment or compromise your vehicle interior. The VehiclePro 420 helps to significantly save space in your department's vehicles.

This rugged printer is packed with features that help departments become more productive:

• Simplest setup - Windows drivers and all-in-one cable.

• Simplest Operation - Door latch, drop-in paper, paper advance, status indicator all on front face.

• Print speeds up to 5 ips.

• IP54 rated for water and dust resistance.

• Printer configuration is quick and easy with a web based interface.

• Runs from vehicle power; robust, locking power connector.

• Auto ON and OFF with vehicle power.

• Compact, smallest volume mobile printer.

• Compatible with Windows, and Android.

• Emulations are available that allow the printer to be a drop-in replacement for most mobile printers.

• Industry best warranty - 3-years!

NOTE: A mounting plate matching your vehicle console must be ordered with the purchase of the VehiclePro 420 for proper installation.

Printing Specifications

• Printing Method: Direct thermal

• Printing Resolution: 203 dpi (8 dots per mm)

• Printing Speed: Up to 5 ips

• Printing Width: Up to 4.1 inches (10.4 cm)

Fonts/Characters/Bar Codes

• Fonts: All TruType fonts, from 6 cpi to 34 cpidepending on emulation chosen, plus scaling.

• Unicode support for international characters.

• Bar Codes: Over 50 1D and 2D codes supported, depending on emulation chosen.

• Downloadable firmware, fonts, graphics, and logos

Connectivity

• Standard: RS232, USB

• Wireless options: Bluetooth® 4.0, Wi-Fi 802.11b/g/n compatible

Memory Capacity

• 256MB Flash, 512 MB DDR. Standard memory supports large and graphic intensive print jobs.

Software

• Drivers and Utilities: Drivers for WIN 7, WIN 8, and WIN 10. Compatible with Windows, and Android. Print utilities and SDK’s for all platforms.

• Printer Setup via internal web page, access withbrowser from any host (tablets and smartphones included, using optional Bluetooth or Wi-Fi).

• Emulations: Emulates many popular printer brands and languages including: Zebra CPCL and ZPL, and ESCPOS. Firmware can be upgraded as new emulations become available.

Print Media

• Paper Type: Direct Thermal Roll

• Roll Size: Maximum roll diameter 1.75” (44 mm), roll widths up to 4.125” (105 mm).

• Roll Capacity: Approx. 43’ (28.6m), creating 86 6” long receipts.

• Core Size: 0.75” Recommended (19 mm).

Power Management

• 9 - 32 VDC in-vehicle power.

• Auto ON/OFF with vehicle power.

Physical Specifications

• Fits standard console, 3” high panel with a 5” depth.

• Weight: 36 ounces with face panel.

• 1DIN Device: 180 mm x 50 mm (W x H)

Environmental Specifications

• Operating Temp: 0° to 122°F (-18° to 50°C)

• Storage Temp: -4° to 140°F (-20° to 60°C)

• Humidity: 10% to 90% RH (non-condensing)

• Rated IP54 per IEC 529.

Operator Controls and Indicators

• LED indicator for general status.

• Button for paper feed and setup mode.

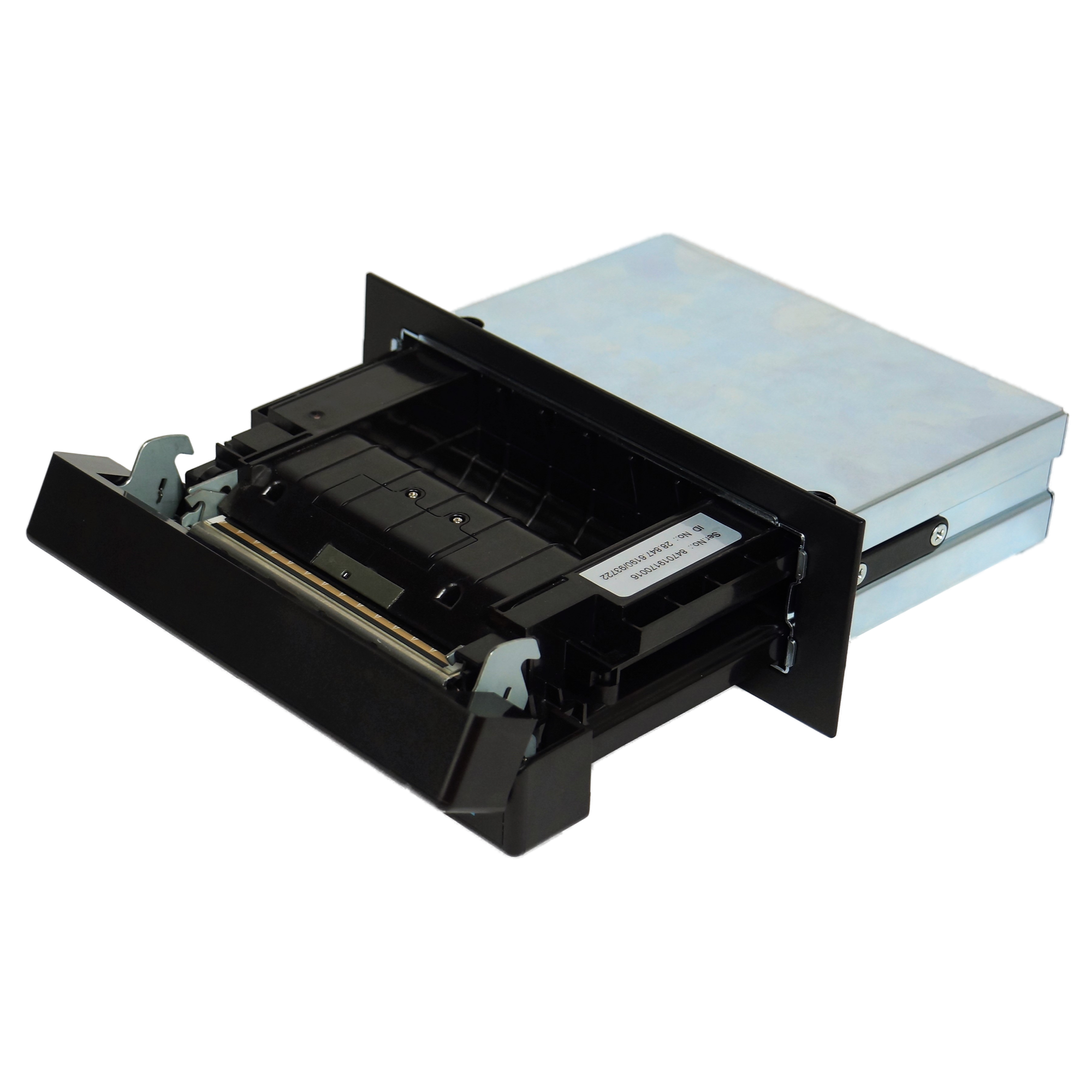

• Latch for paper compartment door.

• All located conveniently on front face.

Durability and Reliability

• Plastic chassis and door in a sheet metal enclosure, with a one piece metal mounting plate.

• MTBF: 10,000 hours in normal use.

• Dual tear bars to allow tearing off receipt in any direction.

Regulatory Approvals

• FCC Class B, CE mark, RoHS, UL listed AC adapters, E-mark.

Warranty

• 3-year printer warranty on the entire printer—print head included.

• Optional 5-year extended warranty available..

Options and Accessories

• Media in case quantities.

• Mounting face plates available for:

• Havis center consoles

• Lund center consoles

• Gamber Johnson center consoles

• D&R Electronics center consoles

• Precision Mounting Tech center consoles

• Troy Products center consoles

• Jotto Desk center consoles
